Description

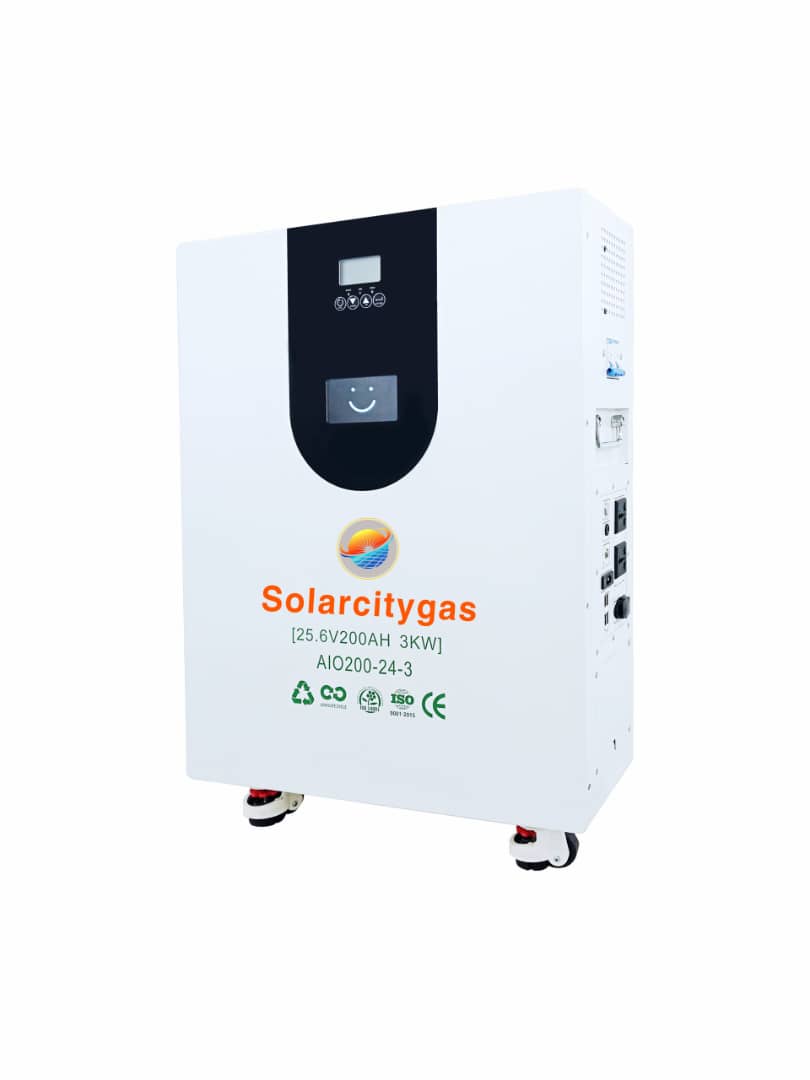

A 5.5 kVA Inverter system with a 10 kWh of battery storage is a hybrid All-in-One solar powerwall capable of powering a home or mid-size business with an off-grid or backup power solution. The 5.5 kVA inverter provides the ability to convert DC power from the solar panels and batteries to AC power for household appliances. The 10 kWh battery storage allows the system to store excess solar energy for later use and provide backup power during grid outages.
Here’s a more detailed breakdown:
5.5 kVA Inverter:
.
This part of the system converts the solar energy (DC) and stored battery power (DC) into AC power that can be used by your home’s appliances and lights.
10 kWh Battery:
.
This provides the storage capacity for the system. During daylight hours, when the solar panels are producing more energy than you need, the excess energy can be stored in the battery. When the sun isn’t shining, or during a power outage, the battery can provide power to your appliances.
Hybrid Inverter:
.
The inverter is designed to work with both solar power and the grid. It can switch between using grid power, solar power, and battery power to ensure a continuous supply of electricity.
Benefits of this system:
Reduced electricity bills:
By using solar power, you can reduce your reliance on the utility grid and save money on your electricity bills.
Backup power:
During a power outage, the batteries can provide backup power to essential appliances, keeping your home or business running.
Energy independence:
You’re less reliant on the grid, giving you more control over your energy consumption.
Environmental benefits:
Using solar power reduces your carbon footprint and helps to protect the environment..
Model Parametric Description AIO200-48
Battery
Battery Type LiFePO4 Battery
Battery Energy 10.24KWh
Nominal Voltage 51.2V
Rated Capacity 200Ah
Voltage Range 42.0~57.0V
Cycle Life Prismatice Cell, > 6000cycles @ 80%DOD
Months Self Discharge <2%
Communicate Protoco CAN/RS485
Charge Temperature 0℃ to 45℃ (32℉ to 113℉)@60±25%Relative Humidity
Discharge Temperature -20℃ to 60℃ (-4℉ to 140℉)@60±25%Relative Humidity
Storage Temperature 0℃ to 40℃ (32℉ to 104℉)@60±25%Relative Humidity
PV
Max. Power 3500W
Max. PV Voltage 500Vdc
MPPT Voltage Range 120~430Vdc
Max.PV charge Current 80A
AC Output
Rated Power 5.0KW
AC Voltage 230Vac±5%
AC Frequency 50Hz/60Hz
Efficiency ≤94%
Transfer time 10ms (for PC) 20ms (for Appliance)
Waveform Pure sine wave
AC Input
Rated AC Voltage 230Vac
AC Voltage Range 170~280Vac(for PC) 90~180Vac(for Applies)
Frequency Range 50Hz/60Hz(Auto sensing)
General Parameters
Altidude ≤2000m
Humidity 5%~95%
Work Telementer -10℃~50℃

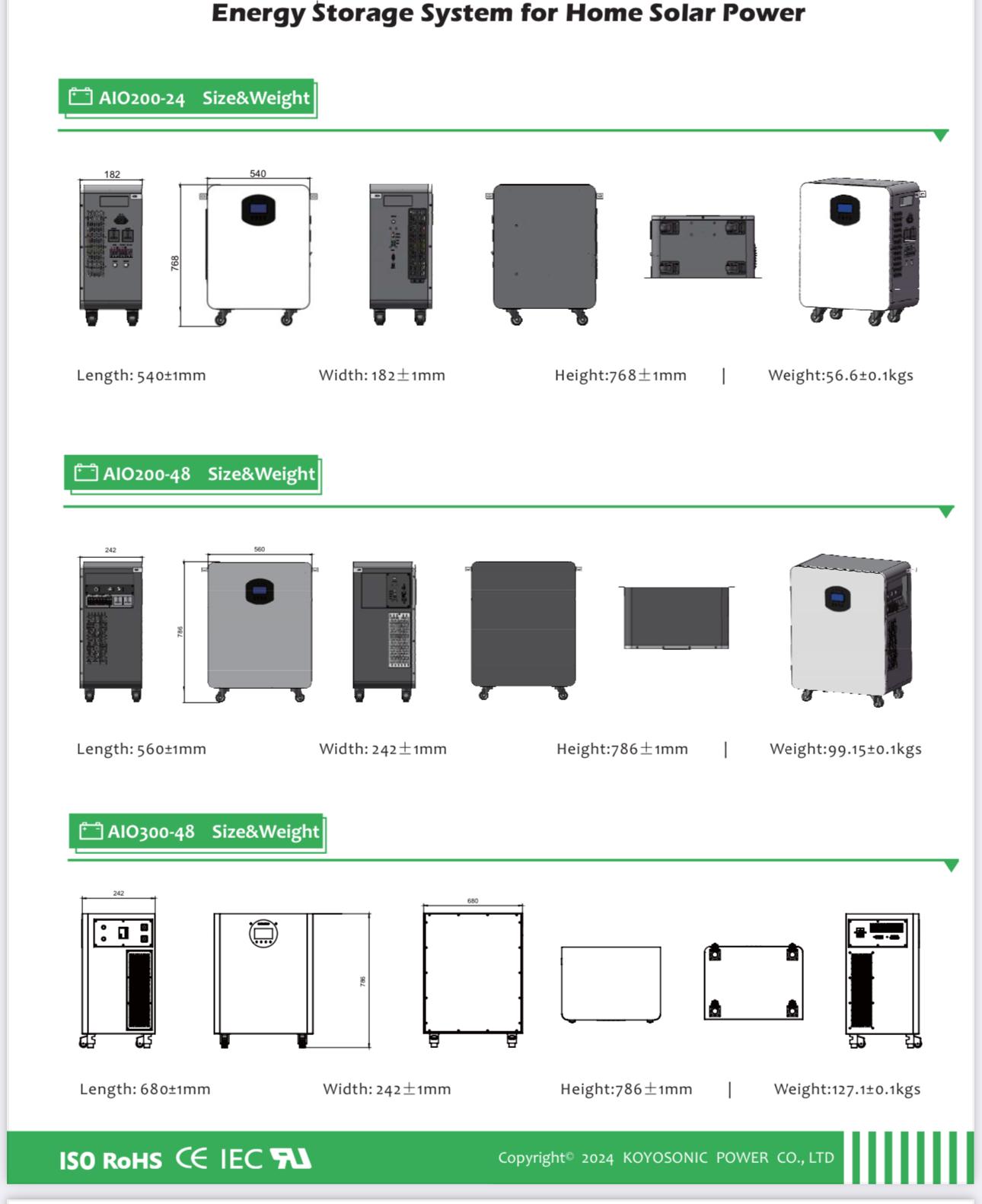

Size(mm) 560*242*786mm
22.04*9.52*30.94Ins
Weight(kg) 99.15kgs/128.58lbs
WARRANTY-5 YEAR
